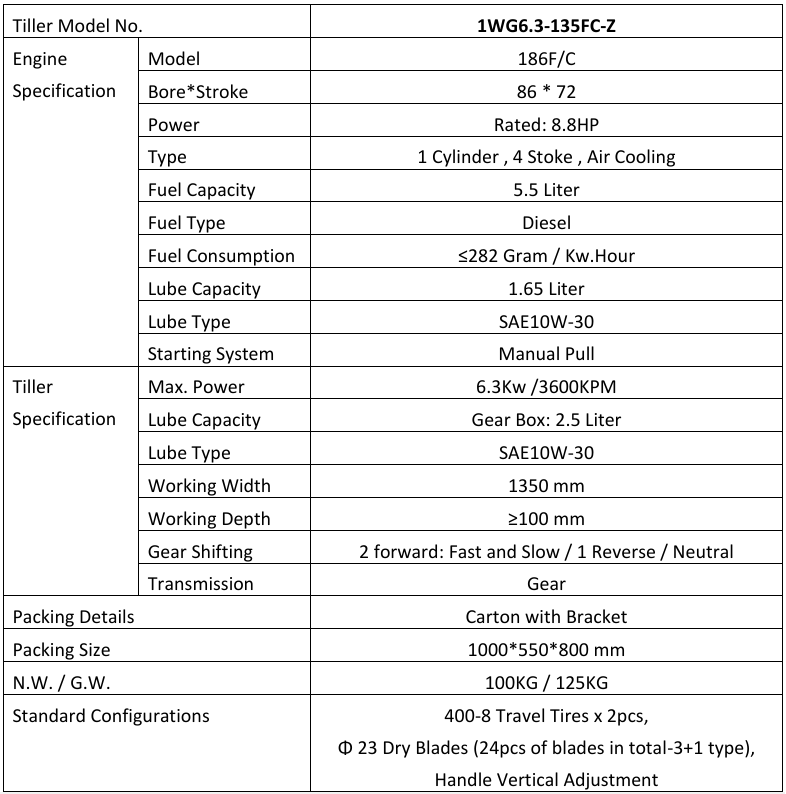

Key Specifications

• Engine Model: 186F/C
• Power: 8.8 HP (Rated)
• Engine Type: 1 Cylinder, 4 Stroke, Air Cooled
• Fuel Type: Diesel
• Fuel Tank Capacity: 5.5 L
• Fuel Consumption: < 282 g/kWh
• Lubrication Capacity: 1.65 L (SAE 10W-30)
• Starting System: Manual Pull Start
• Maximum Power: 6.3 kW / 3600 KPM
• Working Width: 1350 mm
• Working Depth: > 100 mm
• Gear System: 2 Forward (Fast & Slow) + 1 Reverse + Neutral
• Transmission: Gear Type
• Weight: 100 kg / 125 kg (Net / Gross)
• Gearbox Oil Capacity: 2.5 L (SAE 10W-30)

Key Features

• Compact design suitable for narrow and terraced fields
• High-power and fuel-efficient diesel engine
• Lightweight structure for easy handling and operation
• Safety clutch system for overload protection
• 360° adjustable handle for flexible operation
• Multi-functional use: weeding, ploughing, ridging, spraying, irrigation
• Quick attachment change system for convenience
• Adjustable track and blade width based on field requirement
• Easy maintenance with reliable long-term performance
